Ceratitis capitata

Biocontrol of the Mediterranean fruit fly

Common name: Mediterranean fruit fly
Scientific name: Ceratitis capitata
Order: Diptera
Affects: Oranges, tangerines, peaches, apricots and others...
Main season: all year round

Ceratitis capitata

General information

Ceratitis capitata (Wiedemann, 1824) is an insect of the order Diptera belonging to the Tephritidae family. It is originated in the West Coast of Africa, where it lives together with other similar species. It has spread from there to other mild, subtropical and tropical zones in both hemispheres. It is considered a cosmopolitan species because it can be found in many places due to the fact that it travels with the products transported by human.

In spite of its origin, it is also called Mediterranean fruit fly because of its devastating economic effect on Mediterranean countries. It affects many crops, especially citrus plants, as well as pip and stone fruit trees.

In Spain, this pest spreads throughout the Southern and Mediterranean regions, reaching optimal conditions in the regions situated more inland.

It is a highly polyphagous insect that attacks all types of fruit. The larvae live inside the fruit and prefer those that have the most sweet and fleshy pulp such as the peach, but they also damage figs, apricots, oranges, mandarins, persimmons, grapes, pears, pomegranates, mangos, custard apples, papayas, loquats, plums, quinces, etc.

TYPES OF FRUITS

It can produce several generations every year, depending on the climate of the area. During the cold season, they live on the ground in pupal stage. In areas with a mild climate, it can produce up to 7 or 8 generations.


Morphology and biology

Adult: It has vibrant colours such as yellow, white and black. Its size is smaller than that of housefly (4-5 mm long). It has large iridescent green eyes. Its thorax is grey with black spots and long hairs. Its abdomen is tawny with yellow and grey dorsal bands. Its legs are yellowish and its wings are iridescent, with several greyish, yellow and black spots.

The female has a conical abdomen ending in a strong ovipositor in which has black and yellow sensorial bands . The male, being somewhat smaller, has two long bands on the forehead that culminate in a black rhomboidal palate.

Egg: Egg-shaped. Recently laid, it is white, long and slightly curved but then turns yellowish. Its average size is 1 x 0.2 mm. Its surface which is smooth at a glance, shows a micro-reticulum of hexagonal mesh.

Larva: It is small, whitish and apodous with the frontal part situated at the extreme end of the body while the posterior part is wider and shorter. After moulting twice, it reaches its complete growth by looking white or yellow with cream, orange or reddish spots due to the presence of food inside it. Its size is 9 x 2 mm.

Pupa: By completing the last moult, the exoskeleton changes into a protective cover in the shape of a small chestnut-coloured barrel. On the inside, it develops several transformations of its body that will conclude with the adult phase. When the insect emerges (between 6 to 15 days) it splits the puparium open on one of the sides.

Source: Instituto Nacional de Investigación y Tecnología Agraria y Alimentaria (INIA)

Adult of Ceratitis capitata

Adult
© Daniel Feliciano

Ceratitis capitata egg

Eggs
© www.moscamed-guatemala.org.gt

Ceratitis capitata larva

Larva
© Daniel Feliciano

Ceratitis capitata pupa

Pupa
© www.moscamed-guatemala.org.gt

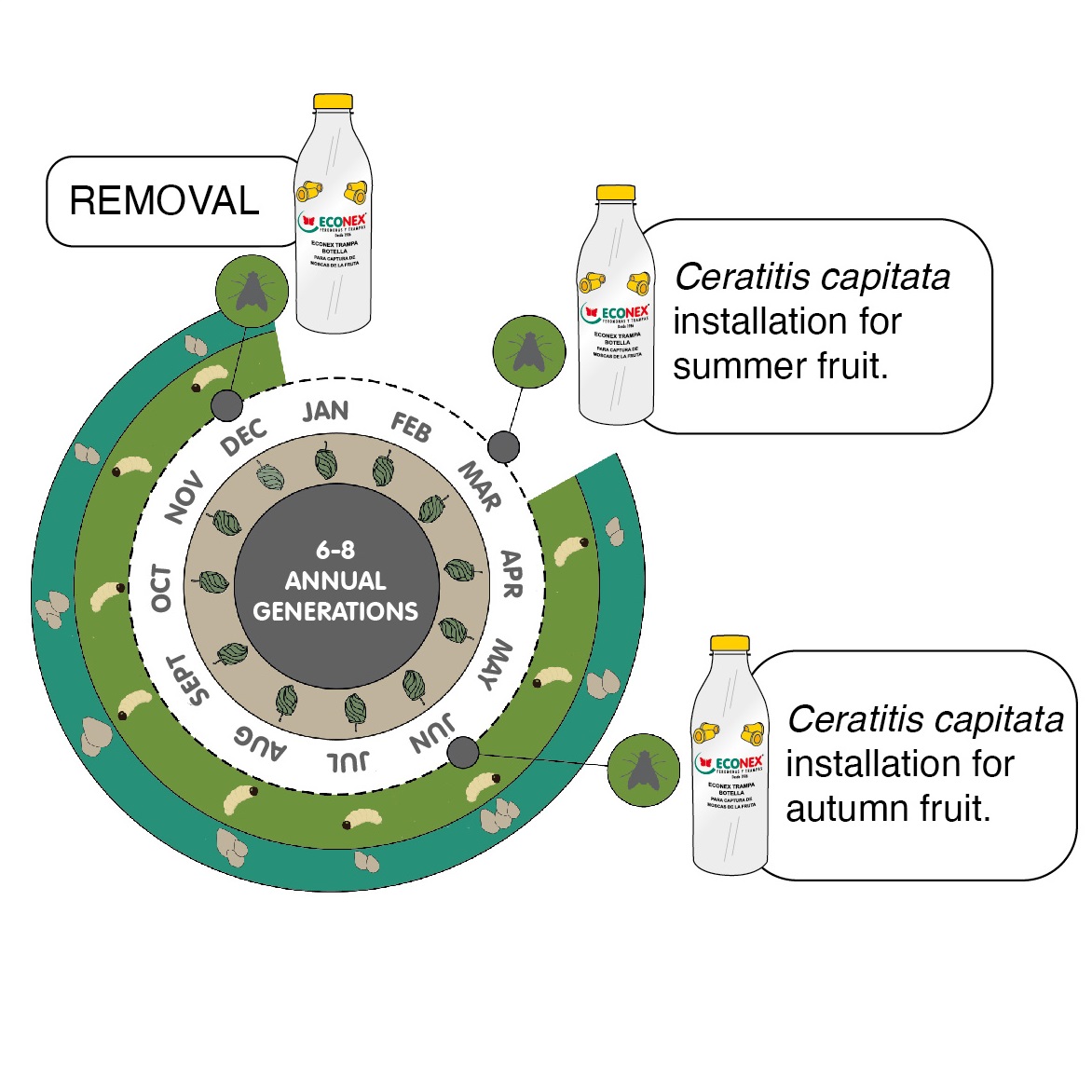

According to Gómez-Clemente, it can have the following cycle in the Mediterranean regions:

In winter, the first generation of female adults appears and attacks oranges and clementines, looking for the sunniest branches. The mature fruits are more vulnerable. All citrus fruits are exposed to its attacks, but the thickness and the texture of the peel, as well as the density of the essential oils’ glands, play an important role in their immunity, as is the case with the lemon.

They fly over the fruits looking for the right place. Colour and scent are two relevant aspects when selecting a place to lay their eggs (they prefer yellow and orange).

Oranges and yellow red

They lay their eggs in groups of 5 to 10. The total number of eggs for each female can range from 300 to 400. Entering inside the fruit, the larvae feed on the pulp. The rotten fruits fall to the ground and the larvae emerges from the inside of the fruit by pupating underground at a depth of 5-10 cm. In spring, a second generation appears and affects apricots. At the beginning of summer, there is a third generation that affects peaches.

In August and September, a fourth and fifth generation affects peaches, pears, figs, persimmons and grapes. The Ceratitis Capitata also begins to bite oranges and mandarins that are still green.

Later on, there is a sixth generation that attacks late fruits, such as oranges and mandarins. If the temperature is mild, there could be other generations.

Activity is reduced in winter but when temperature rises above 14 oC, the flies become active again.

Source: Universidad Politécnica de Valencia.


Damages

The female fly lays (up to 10 eggs) by introducing her ovipositor into the fruits when they begin to ripen. The wound is an entrance for the microorganisms that begin the rotting process of the fruit. Moreover, the larvae excavate galleries inside the fruit, increasing the decomposition and causing the fruit to fall to the ground.

When the larvae feed on the pulp, they favour the processes of oxidation and the premature ripening of the fruit. This causes the fruit to rot, making it unsaleable at the market.

Ceratitis capitata damage on orange

Ceratitis capitata damage on grape

Ceratitis capitata damages

Ceratitis capitata damages

When the fruits fall to the ground, this causes great inconvenience because the fly begins its cycle in the fruit again, multiplying the population of the pest very quickly.

Another important focal point for the fruit fly is the mature and sweet fruits that remain unpicked in the trees after the fruit picking season because of economic or commercial reasons.

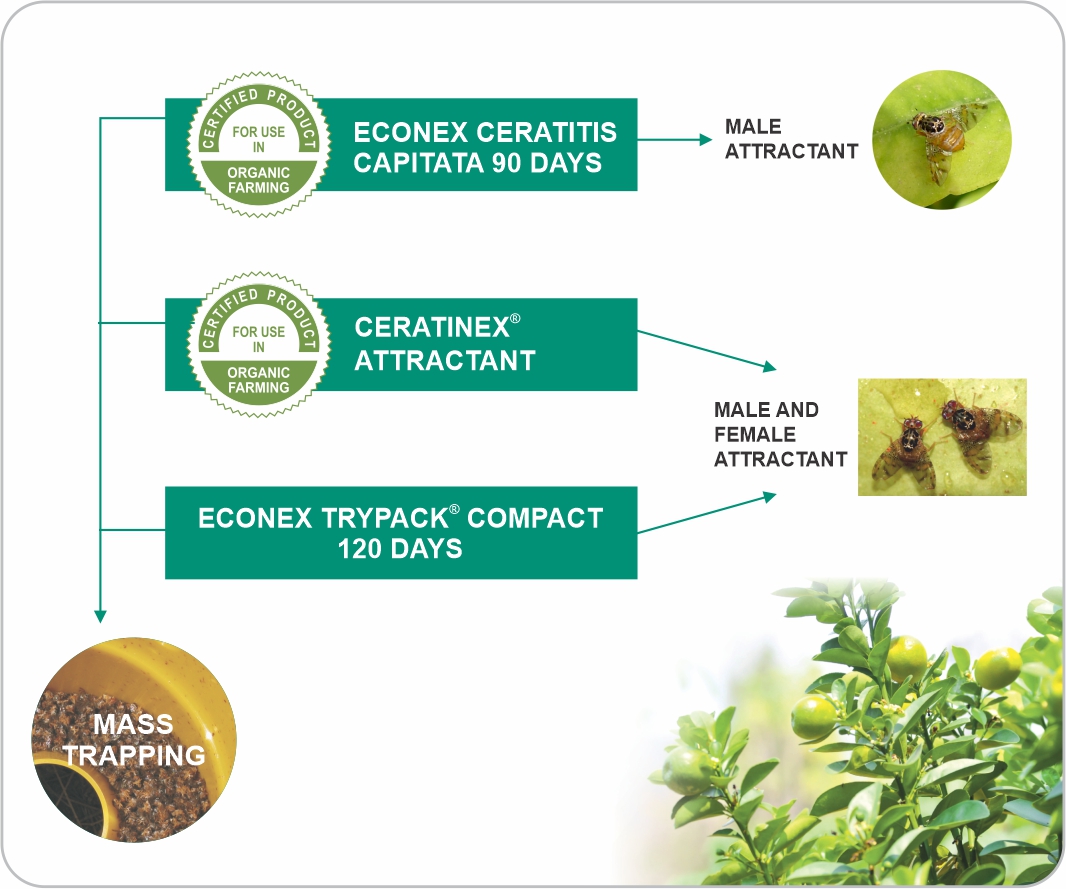

ECONEX SOLUTIONS SUMMARY

ECONEX SOLUTIONS


ECONEX CERATITIS CAPITATA 90 DAYS

Long-lasting sexual attractant for the male of the Mediterranean fruit fly Ceratitis capitata. It lasts 90 days in normal field conditions.

logo inter eco

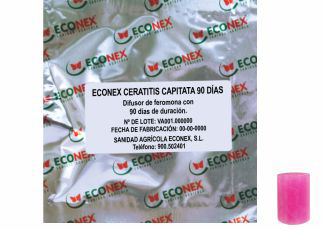

ECONEX CERATITIS CAPITATA 90 DAYS

ECONEX CERATITIS CAPITATA 90 DAYS pheromone diffuser and packaging of the product
(Code: UIPHOVA001)

The diffuser contains 2 g of Trimedlure and consists of a cylinder of compact polyester fibres impregnated with the attractant. It lasts 90 days in normal field conditions

It is individually packaged in an aluminium sachet with labelled specifications

Once taken out of the packaging, the diffuser needs no activation, just placed it properly in the trap.


Detection and monitoring

Place from 1 to 2 traps per hectare, on the south side of the trees and at a height of 1.5 to 2 metres, for the detection and monitoring of the fruit fly populations.

The installation of the traps should be approximately between 1 and 3 months before harvesting the crops

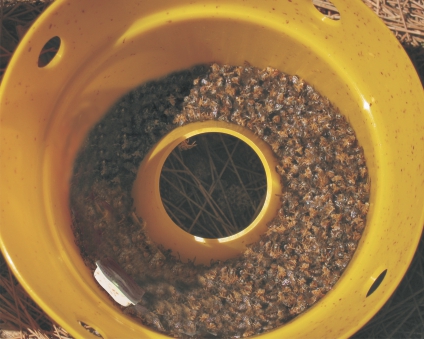

Mass trapping

Males of this species are captured in order to reduce mating, meaning that the unfertilised females will lay unviable eggs. In this way, the pest population is reduced.

For this purpose, the number of traps per surface area must be increased, according to the location and uniformity of the plots. A trap controls a surface area between 500 and 1.000 m2. This means a density of 10 to 20 traps per hectare placed on the south side of the trees at a height of 1.5 to 2 metres.

On the borders of the plots, it will be necessary to place a barrier of traps separated 10 to 15 metres apart from each other.

Sheets Ceratitis


Period of use

To ensure an efficient control of the Mediterranean fruit fly it is advisable to combine two methods: detection and monitoring; and mass trapping.

In spring, 1 to 2 traps per hectare can be placed for the detection of the pest and the control of its population levels.

Through tolerance thresholds established in each area, the moment to adopt control measures is later defined, in this case mass trapping. The tolerance threshold for Ceratitis capitata is very low and varies according to the area and type of traps used. In general, captures per trap and per day are between 0.5 and 3.


Necessary material

We can use the following traps: ECONEX BOTTLE TRAP, INVAGINATED EOSTRAP®, INVAGINATED EOSTRAP®ORANGE LID, ECONEX MOSQUERO, ECONEX FOLDING WHITE TRIANGULAR WITHOUT SHEETS, ECONEX DISPOSABLE WHITE TRIANGULAR , ECONEX JACKSON TRAP SUPER (12X12X18 CM) o ECONEX YELLOW CHROMATIC 40 X 25 CM 1 UNIT PACK.

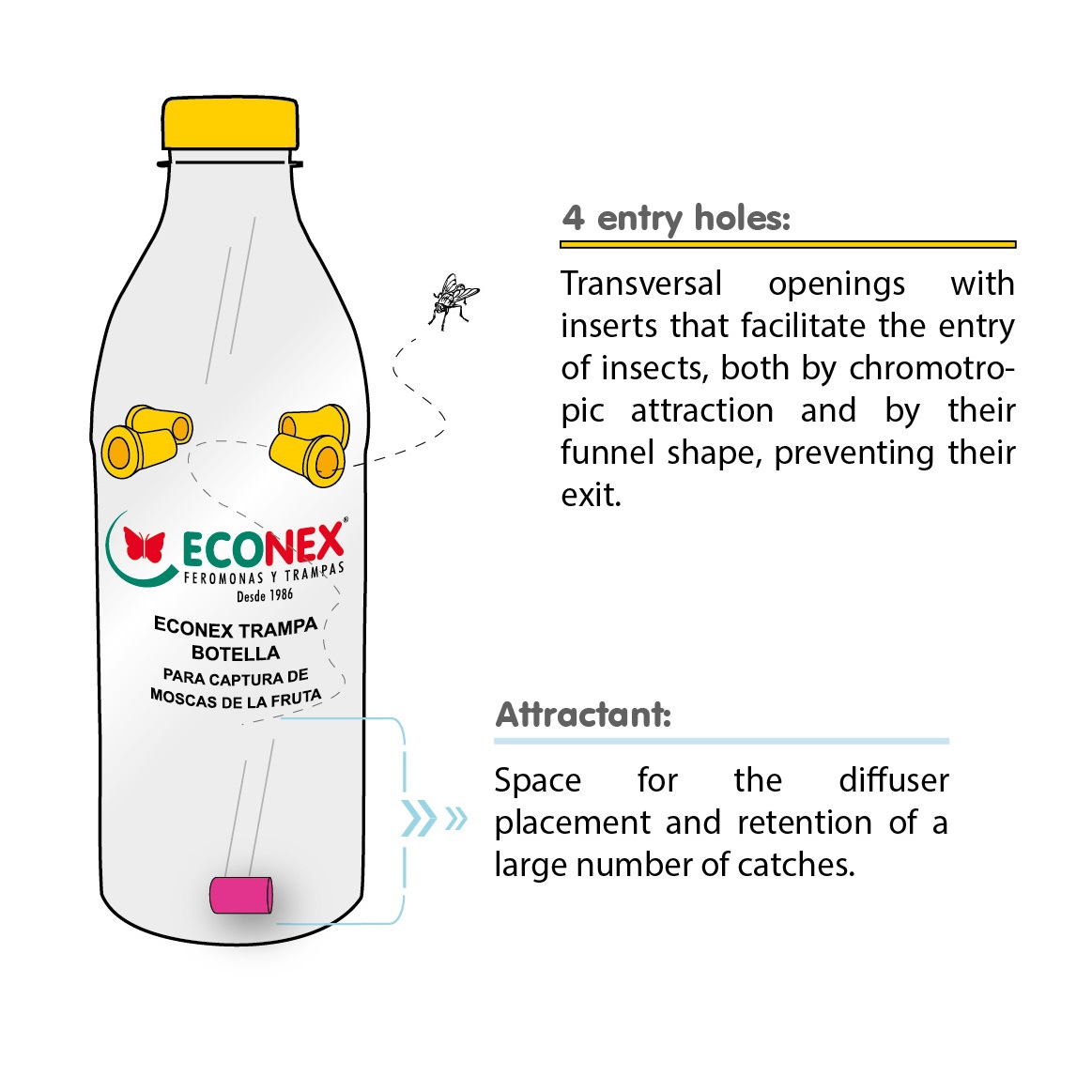

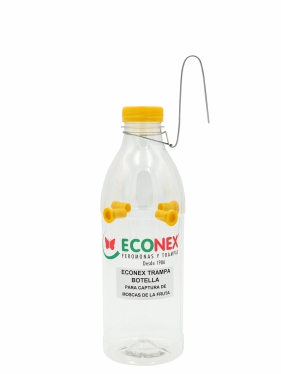

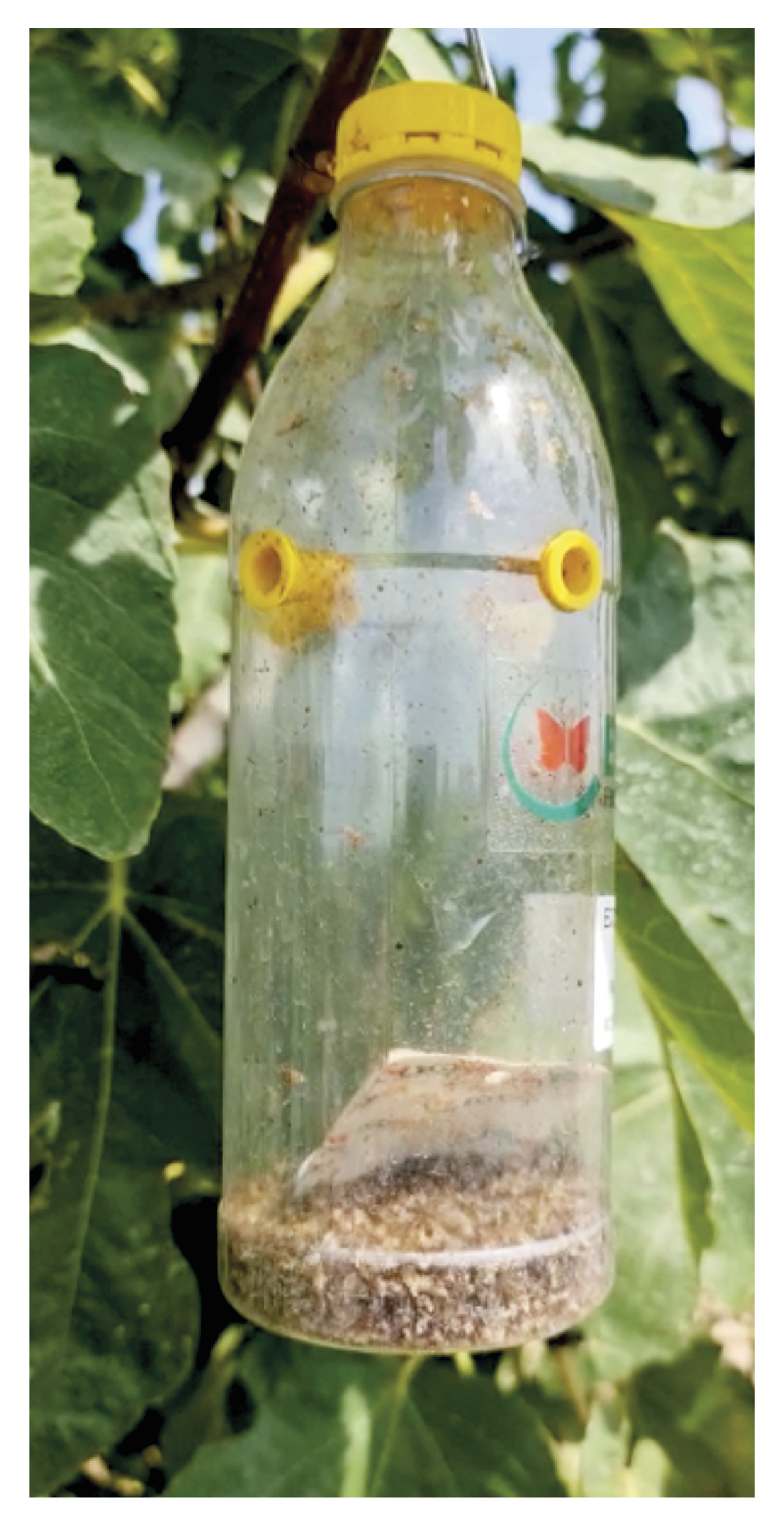

The ECONEX BOTTLE TRAP is a bottle-shaped disposable trap with a capacity of 1 litre and made of PET. It has 4 diagonal holes with yellow polypropylene inserts that have truncated cone shape. These inserts make it easier for the target insects to enter the trap, both by chromotropic attraction as well as its funnel shape, also preventing their exit. It is a versatile and economical trap, optimised for its use in attraction and capture, by filling it with the appropriate attractant (not included) for the fruit fly (Ceratitis capitata).

ECONEX BOTTLE TRAP

ECONEX BOTTLE TRAP
(Code: UIPFETA250)

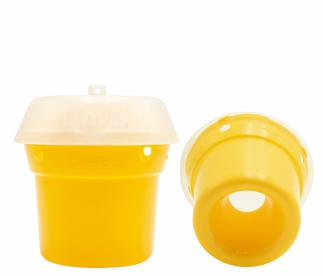

INVAGINATED EOSTRAP®

INVAGINATED EOSTRAP®
(Code: UIPFETA090)

INVAGINATED EOSTRAP® ORANGE LID

INVAGINATED EOSTRAP® ORANGE LID
(Code: UIPFETA177)

ECONEX MOSQUERO

ECONEX MOSQUERO
(Code: UIPFETA006)

ECONEX FOLDING WHITE TRIANGULAR WITHOUT SHEETS

ECONEX FOLDING WHITE TRIANGULAR WITHOUT SHEETS
(Code: UIPFETA273)

ECONEX SHEET FOR TRIANGULAR 1 UNIT PACK

ECONEX SHEET FOR TRIANGULAR 1 UNIT PACK
(Code: UIPFETA248)

ECONEX DISPOSABLE WHITE TRIANGULAR

ECONEX DISPOSABLE WHITE TRIANGULAR
(Code: UIPFETA242)

ECONEX JACKSON TRAP SUPER (12X12X18 CM)

ECONEX JACKSON TRAP SUPER (12X12X18 CM)
(Code: UIPFETA188)

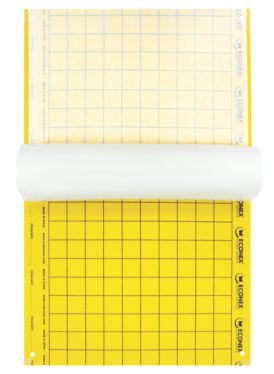

ECONEX YELLOW CHROMATIC 40 X 25 CM 1 UNIT PACK

ECONEX YELLOW CHROMATIC 40 X 25 CM 1 UNIT PACK
(Code: UIPFETA125)

The INVAGINATED EOSTRAP® and ECONEX MOSQUERO traps are more appropriate than the ECONEX TRIANGULAR and ECONEX JACKSON SUPER traps for mass trapping. Regarding the INVAGINATED EOSTRAP ® and the ECONEX MOSQUERO traps, it is recommendable to use them together a substance capable of killing or retaining the captured insects inside the traps, for example olive oil. These traps stand out for their large capacity to capture insects and for their suitability to capture insects and keep them intact, which allows a better morphological study of them.

In the ECONEX MOSQUERO a small cage is placed as an accessory for placing the diffuser. However, in the INVAGINATED EOSTRAP® it is not necessary, as the diffuser is placed in a retractable clip in the upper inside of the lid. Both traps can be combined with a food attractant, whose use is permitted in Organic Farming

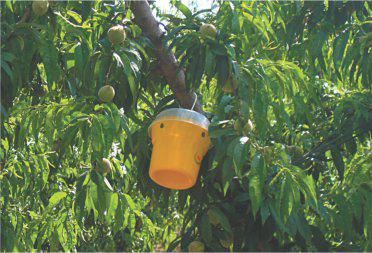

INVAGINATED EOSTRAP® PLACED IN PEACH TREE

INVAGINATED EOSTRAP® placed in a peach tree

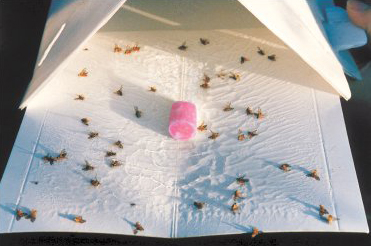

WHITE TRIANGULAR ECONEX without blades with installed diffuser

ECONEX CERATITIS CAPITATA 90 DAYS diffuser placed in a trap ECONEX WHITE TRIANGULAR

The ECONEX FOLDING WHITE TRIANGULAR WITHOUT SHEETS trap is activated by placing an ECONEX SHEET FOR TRIANGULAR 1 UNIT on the base. The sheet is impregnated with a pressure-sensitive adhesive, solvent free, in which the insects are trapped.

The ECONEX JACKSON TRAP SUPER (12X12X18 CM) includes an adhesive sheet impregnated with a pressure-sensitive adhesive, solvent free, in which the insects are trapped.

The ECONEX YELLOW CHROMATIC 40 X 25 CM trap is an adhesive trap. It is a yellow polythene sheet, resistant to sunlight, of 1000 cm2 (40 x 25 cm) and with a 2×2 cm black grid on both sides. The sheet is covered on both sides with a pressure-sensitive adhesive, solvent free, which is protected by a translucent, silicone paper. There is a margin of 1 cm on the longer sides of the sheet that does not contain the adhesive to facilitate its handling. It has a hole in each corner to make its installation easier.

The traps ECONEX FOLDING WHITE TRIANGULAR without sheets, ECONEX DISPOSABLE WHITE TRIANGULAR, ECONEX JACKSON TRAP SUPER (12X12X18 CM) y ECONEX YELLOW CHROMATIC 40 X 25 CM stand out above all the rest because of their simplicity of use. Moreover, they work until the pheromone runs out or the adhesive sheet becomes saturated. However, they are less recommended in areas with lots of dust in the air.


Factors that influence the number of traps needed

The pest population, the bordering crops, the level of control required, etc..

An important factor is the size of the crops. In small and irregular crops, a greater number of traps are required than in larger and more uniform ones.

Another important factor is the distance between plots that have Ceratitis capitata. In these cases, the borders of the plots must be reinforced, so it could be necessary to place up to 20 traps per hectare or even more for mass trapping.


PRODUCT STORAGE

The diffusers must be stored in their original packaging without opening them and in the refrigerator at 4 oC; or in the freezer at -18 oC, in which case they will last for 2 and 4 years respectively.


CERATINEX® ATTRACTANT

CERATINEX® ATTRACTANT


CERATINEX® ATTRACTANT KIT

Bottle-shaped disposable trap in the form of a closed bottle. It has 4 diagonal holes with yellow polypropylene inserts that have a truncated cone shape. These inserts make it easier for the target insects to enter the trap, both by chromotropic attraction as well as its funnel shape, also preventing their exit. The trap contains four tablets (20 g) of food attractant to dissolve in 500 ml of water. The trap includes a wire hanger to hang from a branch.

It lasts approximately 100 days in normal field conditions, provided that the level of water remains stable. This will depend on temperature, relative humidity, wind and sun exposure.

INSTRUCTIONS: Take the bottle cap off, add 500 ml of water (up to the indicated level on the inside sticker), close the bottle cap again, remove the upper label to open the holes and hang the bottle from a branch on the sunny side of the tree. Refill the bottle if more than 1/3 of water evaporates.

PRODUCT STORAGE: The product must be stored in its original packaging without opening it in a cool and dry place. In these conditions, it will last for 2 years from the production date.

ECONEX CERATITIS pheromone diffuser CAPITATA 90 DAYS

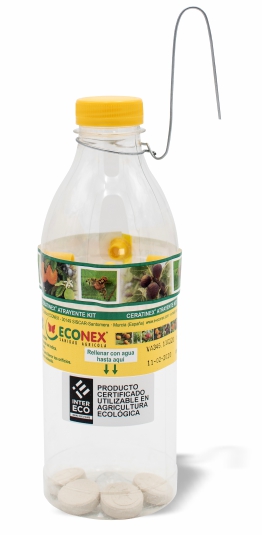

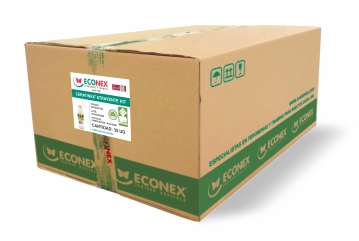

CERATINEX® ATTRACTANT KIT
(Code: UIPHOVA345)
Kit composed of a disposable trap with four tablets of food attractant to dilute in water + 1 hanger


CERATINEX® ATTRACTANT + ECONEX BOTTLE TRAP

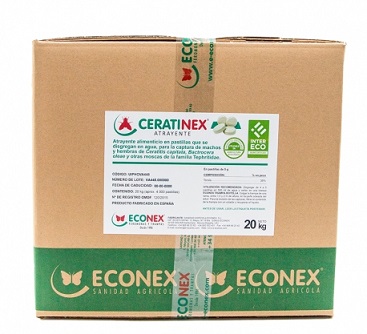

CERATINEX® ATTRACTANT 20 KG

CERATINEX® ATTRACTANT 20 KG
(Code: UIPHOVA448)
Container with 20 kg of product.
(4000 tablets)

boton comprar

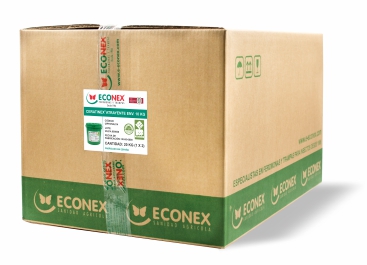

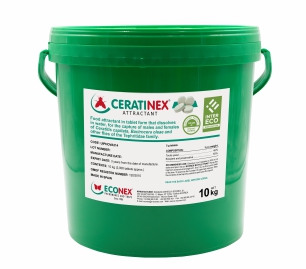

CERATINEX® ATTRACTANT 10 KG

CERATINEX® ATTRACTANT 10 KG
(Code: UIPHOVA214)
Container with 10 kg of product.
(2000 tablets)

CERATINEX® ATTRACTANT 5 KG

CERATINEX® ATTRACTANT 5 KG
(Code: UIPHOVA321)
Container with 5 kg of product.
(1000 tablets)

CERATINEX® ATTRACTANT 1 KG

CERATINEX® ATTRACTANT 1 KG
(Code: UIPHOVA322)
Container with 1 kg of product.
(200 tablets)

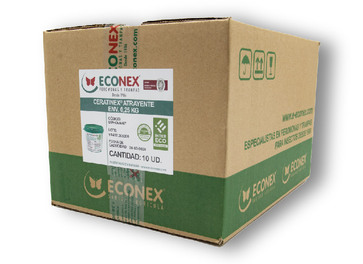

CERATINEX® ATTRACTANT 0,25 KG

CERATINEX® ATTRACTANT 0,25 KG
(Code: UIPHOVA333)
Container with 0,25 kg of product.
(50 tablets)


ECONEX BOTTLE TRAP

ECONEX BOTTLE TRAP
(Code: UIPFETA250)


Recommended use

Dissolve 4 or 5 tablets in 500 ml of water and pour into an ECONEX BOTTLE TRAP.

Hang the trap from a branch at a height of 1.5 to 2 m, on the sunny side of the tree.

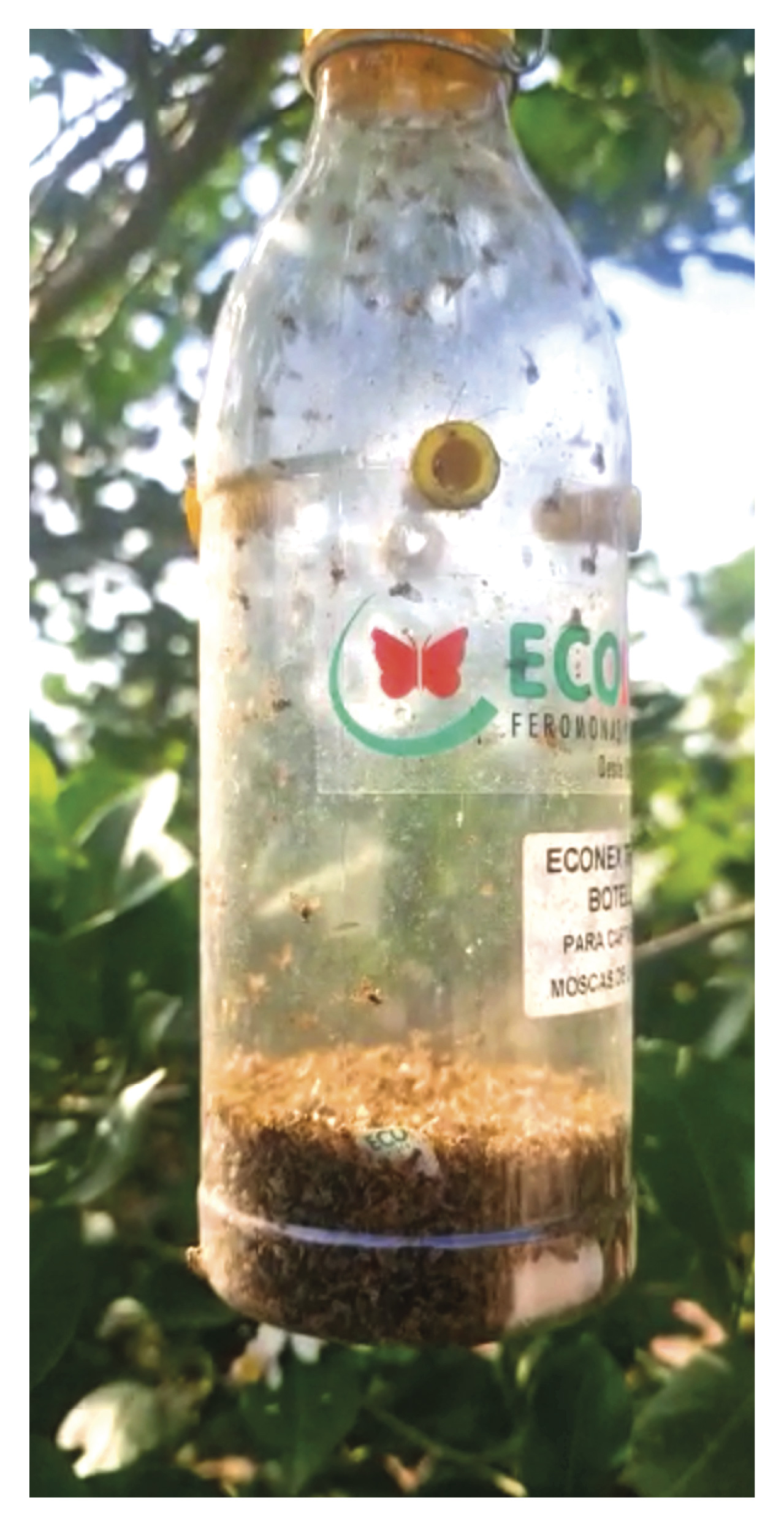

To examine the captures, you have to filter the contents of the trap into a strainer and keep the liquid.

It lasts approximately 100 days in normal field conditions, depending on temperature, relative humidity, degree of sun exposure and type of trap used.


Activation

Activate the trap by dissolving 4 or 5 tablets in 500 ml of water.


Detection and monitoring

Place 1 or 2 traps per hectare. The traps must be activated at least 2 weeks before the start of the target insect’s flight period.


Mass trapping

Increase the number of traps per hectare. It could be necessary from 70 to 120 traps/ha.


Product storage

The product must be stored in its original packaging in a cool and dry place. In these conditions, it will last for 2 years from the production date.


ECONEX TRYPACK® COMPACT 120 DAYS

Specific attractants for females and males of Ceratitis capitata.

The diffusers are in a blister pack and individually packed in an aluminium sachet with labelled specifications. They last 120 days in normal field conditions. They are also sold in packs of 50 units.

CERATINEX® ATTRACTANT

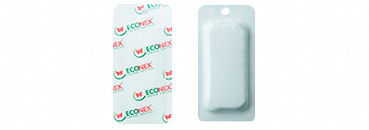

Attractant diffuser in front and back view

Once removed from the packaging (of 1 or 50 units), the diffuser needs no activation or opening, just placed it correctly in the trap.

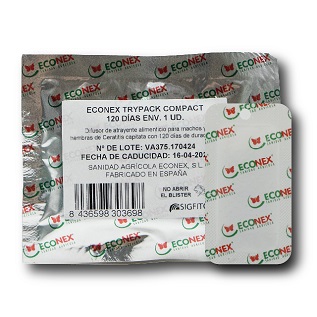

ECONEX TRYPACK® COMPACT 120 DAYS 1 UNIT

Diffuser of 3 food attractants specifically for females and males of Ceratitis capitata. It lasts 120 days in normal field conditions.

ECONEX TRYPACK® COMPACT pheromone diffuse 120 DAYS ENV. 1 UD.

ECONEX TRYPACK® COMPACT 120 DAYS 1 UNIT
(Code: UIPHOVA375)
Pack of 1 unit and attractant diffuser

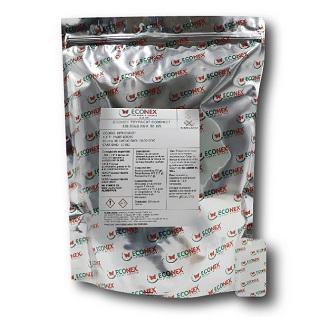

ECONEX TRYPACK® COMPACT 120 DAYS 50 UNIT

Diffuser of 3 food attractants specifically for females and males of Ceratitis capitata. It lasts 120 days in normal field conditions. It is sold in packs of 50 units.

ECONEX TRYPACK® COMPACT pheromone diffuse 120 DAYS ENV. 50 UD

ECONEX TRYPACK® COMPACT 120 DAYS 50 UNITS
(Code: UIPHOVA397)

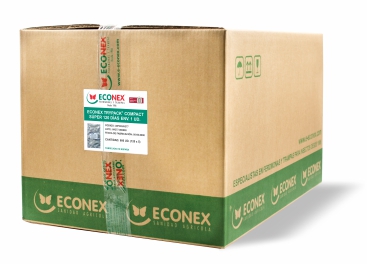

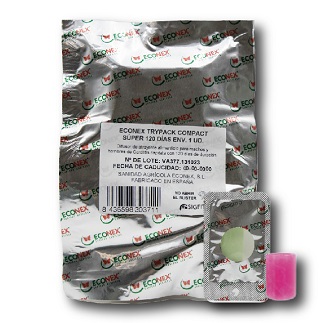

ECONEX TRYPACK® COMPACT SUPER 120 DAYS 1 UNIT

Diffuser of 3 food attractants and 1 parapheromone to attract females and males of Ceratitis capitata, It lasts 120 days in normal field conditions.

ECONEX TRYPACK® COMPACT pheromone diffuse 120 DAYS ENV. 1 UD.

ECONEX TRYPACK® COMPACT SUPER 120 DAYS 1 UNIT
(Code: UIPHOVA377)


Period of use

To obtain good control of the Mediterranean fruit fly it is advisable to combine two methods: detection and monitoring; and mass trapping.

In spring, 1 to 2 traps per hectare can be placed for the detection of the pest and observation of its population levels. Through tolerance thresholds established in each area, the moment to adopt control measures is later defined, in this case mass trapping.

The tolerance threshold for Ceratitis capitata is very low and varies according to the area and type of traps used. In general, the captures per trap and per day are between 0.5 and 3.


Necessary material

An INVAGINATED EOSTRAP® or o INVAGINATED EOSTRAP ORANGE LID® together with an attractant diffuser: ECONEX TRYPACK® COMPACT 120 DAYS or an ECONEX TRYPACK®COMPACT SUPER 120 DAYS.

EOSTRAP®

INVAGINATED EOSTRAP®
(Code: UIPFETA090)

ECONEX MOSQUERO

INVAGINATED EOSTRAP® ORANGE LID
(Code: UIPFETA177)


Mass trapping

Ceratitis capitatafemales are captured and also some males of this species, in order to reduce mating, meaning that unfertilised females will lay unviable eggs. This greatly reduces the population of the pest.

For this purpose, the number of traps per surface area must be increased, according to the location and uniformity of the plots.

CERATINEX® ATTRACTANT

A trap controls a surface area between 500 and 1.000 m2. This means a density of 10 to 20 traps per hectare. They should be placed on the south side of the trees and at a height of 1.5 to 2 metres.

On the borders of the plots, it will be necessary to set a barrier of traps separated 10 to 15 metres apart from each other.

CERATINEX® ATTRACTANT


Product storage

The diffusers must be stored in their original packaging without opening them and in a refrigerator at 4oC; or in a freezer at -18 oC, in which case they will last for 2 and 4 years respectively.

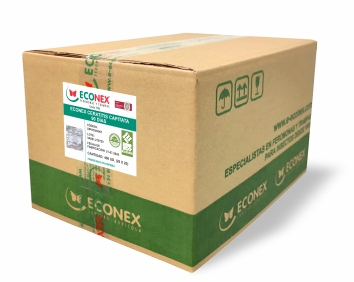

PACKAGING ECONEX CERATITIS CAPITATA 90 DAYS


ECONEX CERATITIS CAPITATA 90 DAYS

Corrugated cardboard box of 250 units (25 packs of 10 units).
Box size: 0.34 x 0.24 x 0.22 m (length x width x height).
Box weight: 2.15 kg.

Pack of 20 units.

Packs of 10 units.

Box of 400 units.

Box of 250 unit.
(25 packs x 10 units)

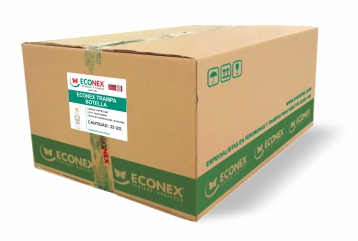

ECONEX BOTTLE TRAP

Corrugated cardboard box of 35 units.
Box size: 0.42 x 0.60 x 0.27 m (length x width x height).
Box weight: 2.10 kg.
No. of boxes per pallet: 28
Pallet size: 0.80 x 1.20 x 2.05 m (length x width x height).
Pallet weight: 69 kg.

Box of 35 units.

Box of 35 units.

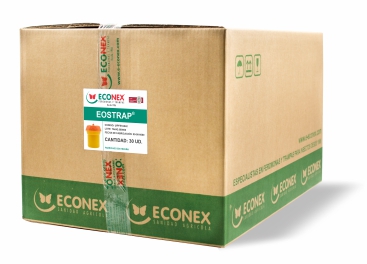

INVAGINATED EOSTRAP®

Corrugated cardboard box of 60 units.
Box size: 0.40 x 0.60 x 0.35 m (length x width x height).
Box weight: 9 kg.
No. of boxes per pallet: 20
Pallet size: 0.80 x 1.20 x 1.95 m (length x width x height).
Pallet weight: 190 kg.

Box of 60 units.

Box of 60 units.

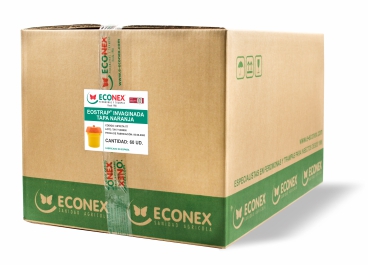

INVAGINATED EOSTRAP® ORANGE LID

Corrugated cardboard box of 60 units.
Box size: 0.40 x 0.60 x 0.35 m (length x width x height).
Box weight: 9 kg.
No. of boxes per pallet: 20
Pallet size: 0.80 x 1.20 x 1.95 m (length x width x height).
Pallet weight: 190 kg.

Box of 60 units.

Box of 60 units.


ECONEX MOSQUERO

Corrugated cardboard box of 50 units.
Box size: 0.40 x 0.60 x 0.35 m (length x width x height).
Box weight: 11 kg.
No. of boxes per pallet: 20
Pallet size: 0.80 x 1.20 x 1.95 m (length x width x height).
Pallet weight: 230 kg.

Box of 50 units.

Box of 50 units.

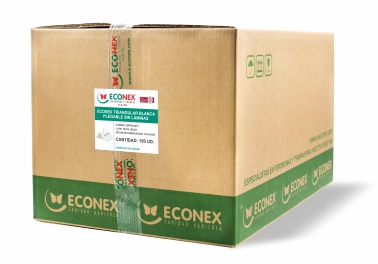

ECONEX FOLDING WHITE TRIANGULAR WITHOUT SHEETS

Corrugated cardboard box of 150 units.
Box size: 0.40 x 0.60 x 0.35 m (length x width x height).
Box weight: 10.60 kg.
No. of boxes per pallet: 20
Pallet size: 0.80 x 1.20 x 1.95 m (length x width x height).
Pallet weight: 222 kg.

Box of 150 units.

Box of 150 units.

ECONEX SHEET FOR TRIANGULAR 1 UNIT PACK.

Corrugated cardboard box of 500 units.
Box size: 0.29 x 0.42 x 0.21 m (length x width x height).
Box weight: 10.75 kg.
No. of boxes per pallet: 50
Pallet size: 1.00 x 1.10 x 1.25 m (length x width x height).
Pallet weight: 545 kg.

Box of 500 units.

Box of 500 units.


ECONEX DISPOSABLE WHITE TRIANGULAR

Corrugated cardboard box of 250 units.
Box size: 0.29 x 0.42 x 0.21 m (length x width x height).
Box weight: 13.10 kg.
No. of boxes per pallet: 50
Pallet size: 1.00 x 1,10 x 1,25 m (length x width x height).
Pallet weight: 665 kg.

Box of 250 units.

Box of 250 units.


ECONEX JACKSON TRAP SUPER (12X12X18 CM)

Corrugated cardboard box of 200 units.
Box size: 0.40 x 0.60 x 0.35 m (length x width x height).
Box weight: 19 kg.
No. of boxes per pallet: 20
Pallet size: 0.80 x 1.20 x 1.95 m (length x width x height).
Pallet weight: 390 kg.

Box of 200 units.

Box of 200 units.


ECONEX YELLOW CHROMATIC 40 X 25 CM 1 UNIT PACK.

Corrugated cardboard box of 250 units.
Box size: 0.29 x 0.42 x 0.21 m (length x width x height).
Box weight: 16 kg.
No. of boxes per pallet: 50
Pallet size: 1.00 x 1.10 x 1.25 m (length x width x height).
Pallet weight: 810 kg.

Box of 250 units.

Box of 250 units.



PACKAGING CERATINEX® ATTRACTANT


CERATINEX® ATTRACTANT KIT

Corrugated cardboard box of 35 units.
Box size: 0.42 x 0.60 x 0.27 m (length x width x height).
Box weight: 3.10 kg.
No. of boxes per pallet: 28
Pallet size: 0.80 x 1.20 x 2.05 m (length x width x height).
Pallet weight: 96 kg.

Box of 35 units.

Box of 35 units.

CERATINEX® ATTRACTANT 20 KG

No. of boxes per pallet: 30
Pallet size: 0.80 x 1.20 x 1.85 m (length x width x height).
Pallet weight: 640 kg.

Box of 1 unit.

Box of 1 unit.

CERATINEX® ATTRACTANT 10 KG

Corrugated cardboard box of 2 units.
Box size: 0.40 x 0.60 x 0.35 m (length x width x height).
Box weight: 22.80 kg.
No. of boxes per pallet: 20
Pallet size: 0.80 x 1.20 x 1.95 m (length x width x height).
Pallet weight: 466 kg.

Box of 2 units.

Box of 2 units.

CERATINEX® ATTRACTANT 5 KG

Corrugated cardboard box of 4 units.
Box size: 0.40 x 0.60 x 0.35 m (length x width x height).
Box weight: 22.70 kg.
No. of boxes per pallet: 20
Pallet size: 0.80 x 1.20 x 1.95 m (length x width x height).
Pallet weight: 464 kg.

Box of 4 units.

Box of 4 units.

CERATINEX® ATTRACTANT 0,25 KG

Corrugated cardboard box of 10 units.
Box size: 0.32 x 0.24 x 0.22 m (length x width x height).
Box weight: 3.25 kg.
No. of boxes per pallet: 88
Pallet size: 0.80 x 1.20 x 1.95 m (length x width x height).
Pallet weight: 296 kg.

Box of 10 units.

Box of 10 units.

CERATINEX® ATTRACTANT 1 KG

Corrugated cardboard box of 16 units.
Box size: 0.40 x 0.60 x 0.35 m (length x width x height).
Box weight: 19.10 kg.
No. of boxes per pallet: 20
Pallet size: 0.80 x 1.20 x 1.95 m (length x width x height).
Pallet weight: 392 kg.

Box of 16 units.

Box of 16 units.

EOSTRAP®

Corrugated cardboard box of 30 units.
Box size: 0.40 x 0.60 x 0.35 m (length x width x height).
Box weight: 5.55 kg.
No. of boxes per pallet: 20
Pallet size: 0.80 x 1.20 x 1.95 m (length x width x height).
Pallet weight: 121 kg.

Box of 30 units.

Box of 30 units.


ECONEX MOSQUERO

Corrugated cardboard box of 50 units.
Box size: 0.40 x 0.60 x 0.35 m (length x width x height).
Box weight: 11 kg.
No. of boxes per pallet: 20
Pallet size: 0.80 x 1.20 x 1.95 m (length x width x height).
Pallet weight: 230 kg.

Box of 50 units.

Box of 50 units.


ECONEX BOTTLE TRAP

Corrugated cardboard box of 35 units.
Box size: 0.42 x 0.60 x 0.27 m (length x width x height).
Box weight: 2.10 kg.
No. of boxes per pallet: 28
Pallet size: 0.80 x 1.20 x 2.05 m (length x width x height).
Pallet weight: 69 kg.

Box of 35 units.

Box of 35 units.


PACKAGING ECONEX TRYPACK® COMPACT 120 DAYS


ECONEX TRYPACK® COMPACT 120 DAYS ENV. 1 UD.

Corrugated cardboard box of 1200 units. (120 Packs of 10 units).
Box size: 0.40 x 0.60 x 0.35 m (length x width x height).
Box weight: 14 kg.
No. of boxes per pallet:: 20
Pallet size: 0.80 x 1.20 x 1.95 m (length x width x height).
Pallet weight: 290 Kg.

Pack of 1 unit

Pack de 10 units.

Box of 1200 units.

Box of 1200 units.

ECONEX TRYPACK® COMPACT 120 DAYS ENV. 50 UD.

Corrugated cardboard box of 1600 units. (32 Packs of 50 units).
Box size: 0.40 x 0.60 x 0.35 m (length x width x height).
Box weight: 17.5 kg.
No. of boxes per pallet: 20
Pallet size: 0.80 x 1.20 x 1.95 m (length x width x height).
Pallet weight: 360 Kg.

Pack of 50 units.

Pack of 50 units.

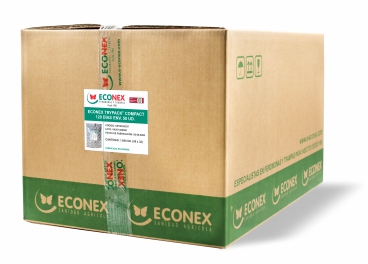

Box of 1600 units. (32 Packs x 50 units.)

Box of 1600 units.
(32 Packs x 50 units.)

ECONEX TRYPACK® COMPACT SÚPER 120 DAYS 1 UNIT.

Corrugated cardboard box of 600 units. (120 Packs of 5 units).
Box size: 0.40 x 0.60 x 0.35 m (length x width x height).
Box weight: 13.50 kg.
No. of boxes per pallet: 20
Pallet size: 0.80 x 1.20 x 1.95 m (length x width x height).
Pallet weight: 280 Kg.

Pack of 1 unit

Pack of 5 units.

Box of 600 units.

Box of 600 units.


INVAGINATED EOSTRAP®

Corrugated cardboard box of 60 units.
Box size: 0.40 x 0.60 x 0.35 m (length x width x height).
Box weight: 9 kg.
No. of boxes per pallet: 20
Pallet size: 0.80 x 1.20 x 1.95 m (length x width x height).
Pallet weight: 190 kg.

Box of 60 units.

Box of 60 units.


INVAGINATED EOSTRAP® LID ORANGE

Corrugated cardboard box of 60 units.
Box size: 0.40 x 0.60 x 0.35 m (length x width x height).
Box weight: 9 kg.
No. of boxes per pallet: 20
Pallet size: 0.80 x 1.20 x 1.95 m (length x width x height).
Pallet weight: 190 kg.

Box of 60 units.

Box of 60 units.


Recommended information:

CERATITIS CAPITATA 90 DAYS LEAFLET

Leaflet in PDF format that can be downloaded by clicking on the image.

CERATITIS CAPITATA 90 DAYS LEAFLET


CERATINEX® ATTRACTANT LEAFLET

Leaflet in PDF format that can be downloaded by clicking on the image.

CERATINEX® ATTRACTANT LEAFLET


ECONEX TRYPACK® COMPACT LEAFLET

Leaflet in PDF format that can be downloaded by clicking on the image.

ECONEX TRYPACK® COMPACT LEAFLET


ECONEX LEARNING CENTER

ECONEX puts at your disposal the first open knowledge center that brings together everything necessary to implement pest biocontrol in your crops. We have developed different types of resources to share with you the knowledge we have acquired during our more than 38 years of experience. Each of them is designed to respond, in the best possible way, to different questions related to pheromones, attractants, repellents and insect traps.

To access ECONEX LEARNING CENTER click on the image.

ECONEX web resources
